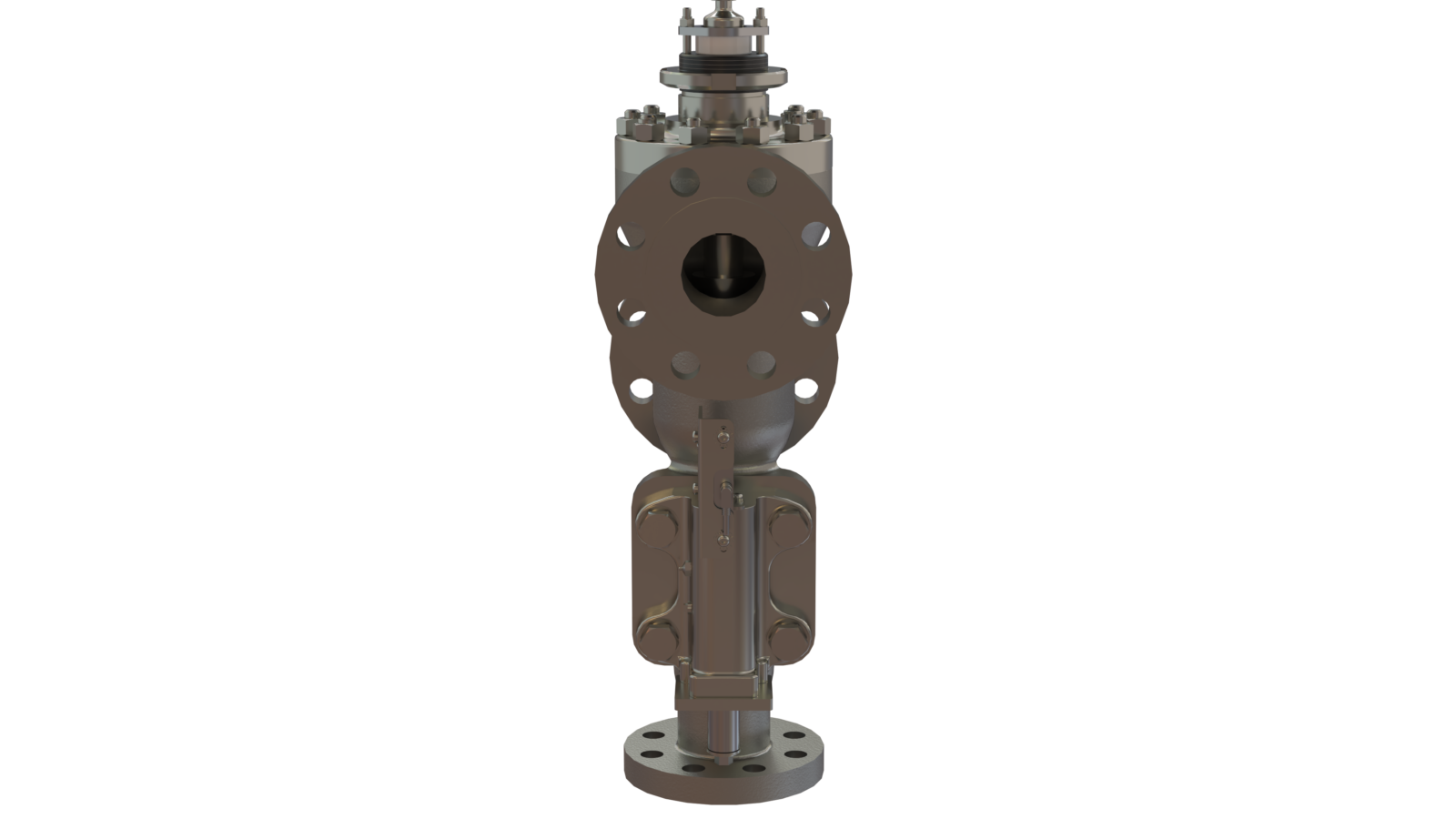

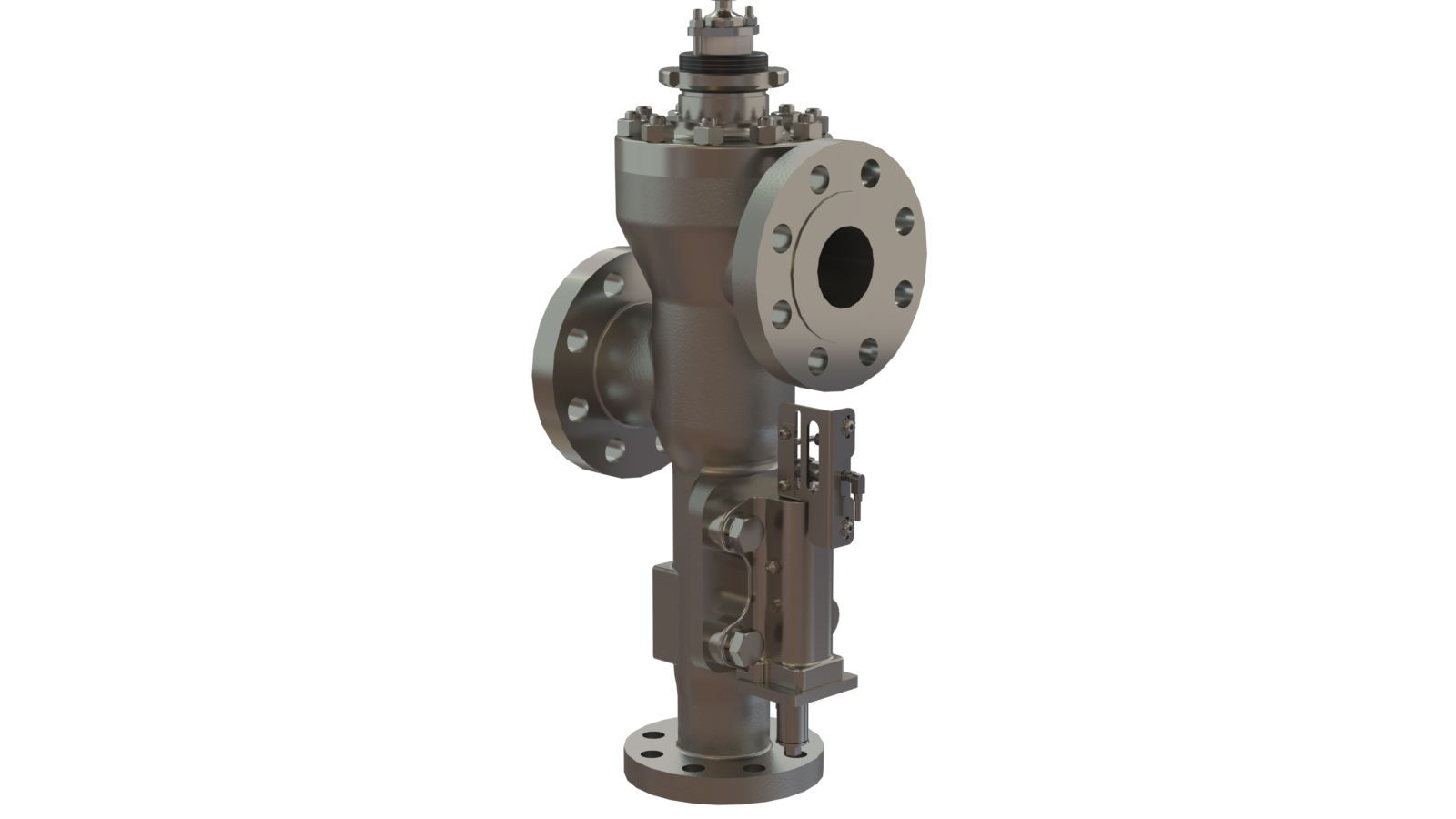

Hydroheater®/Jetcooker™
Product Description:
The Industrial Jetcooker™ is perfect for precisely heating liquids and slurries across varying viscosities and solids. Its unique combining tube adjustor allows easy control of process shear, making it ideal for optimal starch conversion.
- Patented internal design allows for precise control of steam and turn-down adjustability
- Self-cleaning design eliminates scale build-up and product fouling
- Steam flow control creates consistent, instantaneous mixing and steam velocity while eliminating hammer and vibration
- Choked flow technology accurately meters steam for precise temperature control
- Precise temperature control (+/- 1 degree) helps you reach and hold your desired set point
- Uniform heating of water, liquids, and slurries
- Process flexibility and stability ensured through a detailed design and engineering process
Applications:
Industries:
Product SKU:
K610, K611, K612, K612, K614, K615, M103, M104, M106, M107, M108
Pressure & Temperature
- Max Pressure – 300 PSIG / 20.7 Barg
- Max Temperature – 450°F / 232°C
M-Series Hydroheater
- Max Pressure – 300 PSIG / 20.7 Barg
- Max Temperature – 450°F / 232°C
Flow Turndown
K-Series Hydroheater
- 3:1 Turndown Ratio (Water)
- 2:1 Turndown Ratio (Viscous Slurries)
M-Series Hydroheater
- 3:1 Turndown Ratio (Water)
- 2:1 Turndown Ratio (Viscous Slurries)
Connection Types
- ANSI Class 150 & Class 300
- DIN PN16, PN25, PN40
- Other custom connections available
Materials of Construction
- 316 Stainless Steel
- Other custom materials available
